Arctic P12 Max High-Performance 12cm PWM Case Fan with Dual Ball Bearing 200-3300 RPM
Arctic P12 Max High-Performance 12cm PWM Case Fan with Dual Ball Bearing 200-3300 RPM
Couldn't load pickup availability
- Product Highlights
- Product Description
- Specifications
- Technical specifications & manual
- Virtually Silent due Fluid Dynamic Bearing.
- Extremely Wide Speed Range from 200 rpm up to 3300 rpm.
- Optimised for use on radiators, heat sinks, pinholes and mesh.
- Closed fan wheel design which ensures pressure stability without compromise.
Virtually Silent due Fluid Dynamic Bearing
As a special feature, the P12 Max is equipped with ARCTIC's proven Hydrodynamic Bearing. This enables the virtually silent operation at low speeds that customers have been asking for. At maximum speed, brute performance is still guaranteed. Although these bearings tend to wear out, ARCTIC does not compromise on durability and still offers the 6-year warranty.
Extremely Wide Speed Range
The P12 Max features the controllable speed of an impressively wide range from 200 rpm up to 3300 rpm. This enables a quiet operation when low airflow is needed and also an unprecedented level of performance on heatsinks and radiators. The P12 Max provides a significant performance boost to existing air and water cooling solutions.
Maximum Performance - Without Compromises
The P12 Max delivers focused airflow and high static pressure, making it suitable for all scenarios. The fan is optimised for use on radiators, heat sinks, pinholes and mesh. Therefore, the P12 Max is the ideal fan for enthusiasts and professionals who are looking for maximum performance with a long service life.
0dB Mode - Zero RPM
The fan speed can be throttled down to standstill via PWM. This allows silent operation in IDLE and at the same time guarantees maximum performance when required. Thus, the P12 Max allows an incomparably dynamic adjustment of the speed, so that the airflow can be perfectly regulated for every case.
Improved Stability
The P12 Max features a closed fan wheel design. The advantage of this fan wheel combination is a pressure stability without compromise. In scenarios with high pressure resistances and higher speeds, the force effect is distributed uniformly over the entire fan wheel and enables low-vibration rotation while maintaining high static pressure.
Maximum Smoothness, Minimum Vibration
Due to a sinus-magnetizing, the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. The rubber pads mounted at the corners additionally dampen the residual vibrations caused by the higher revolutions.
|

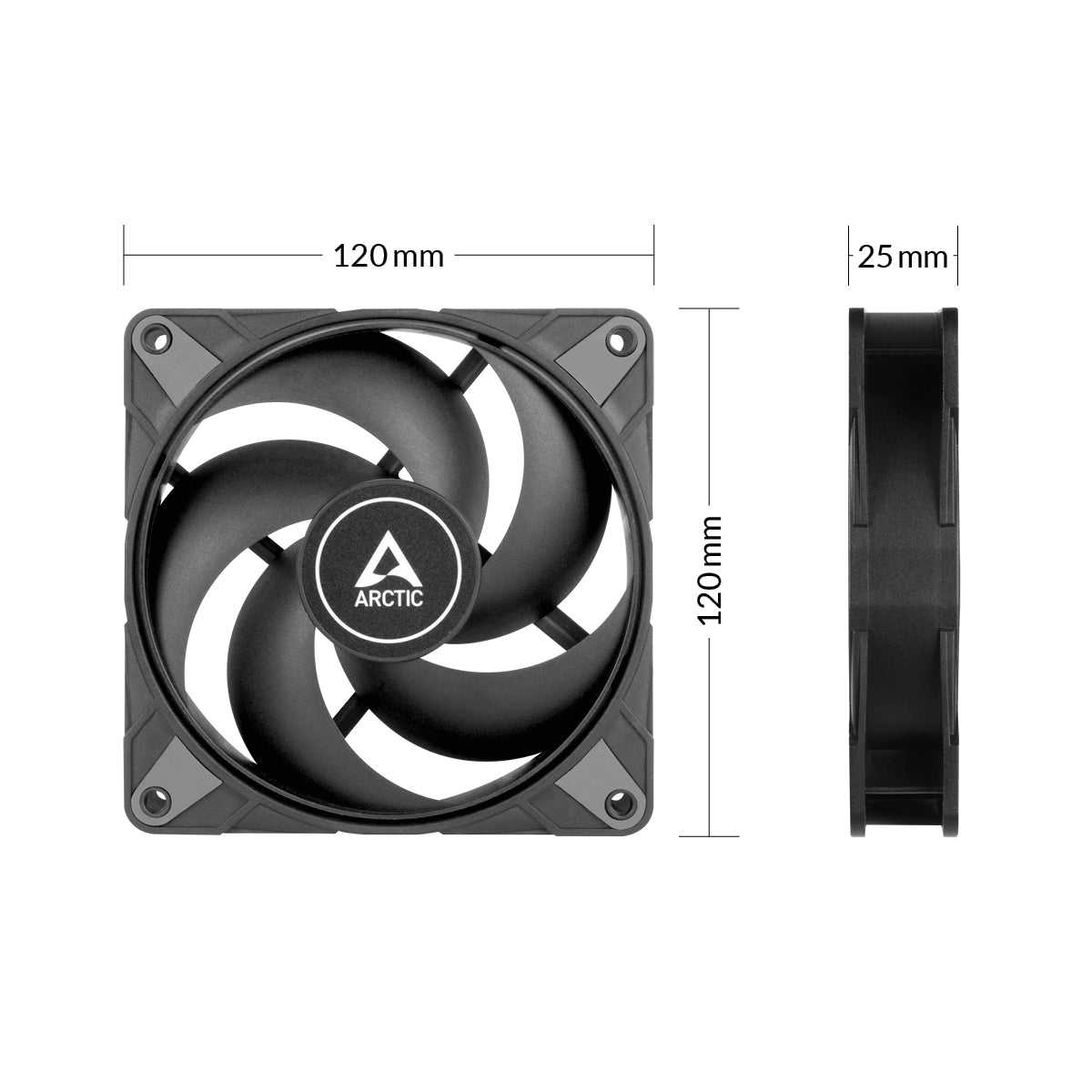

Dimensions: |
120 (L) x 120 (W) x 25 (H) mm |
|
Net Weight: |
184 g |
|
Operating Ambient Temperature: |
0–40 °C |
|
Warranty: |
6 Years |
Fan Specifications
|
Fan Speed: |
200–3300 rpm (PWM controlled), 0 rpm below 5 % PWM |
|
Airflow: |
81.04cfm | 137.69m³/h |
|
Static Pressure: |
4.35 mmH2O |
|
Noise Level: |
0.6 Sone |
|
Fan Bearing: |
Fluid Dynamic Bearing |
|
Typical Voltage: |
12 V DC |
|
Start Up Voltage: |
3.9V DC |
|
Current: |
0.29 A |
|
Cable Length: |
400 mm |
|
Connector: |
4-Pin PWM Connector |
EAN Number:
4895213704076
