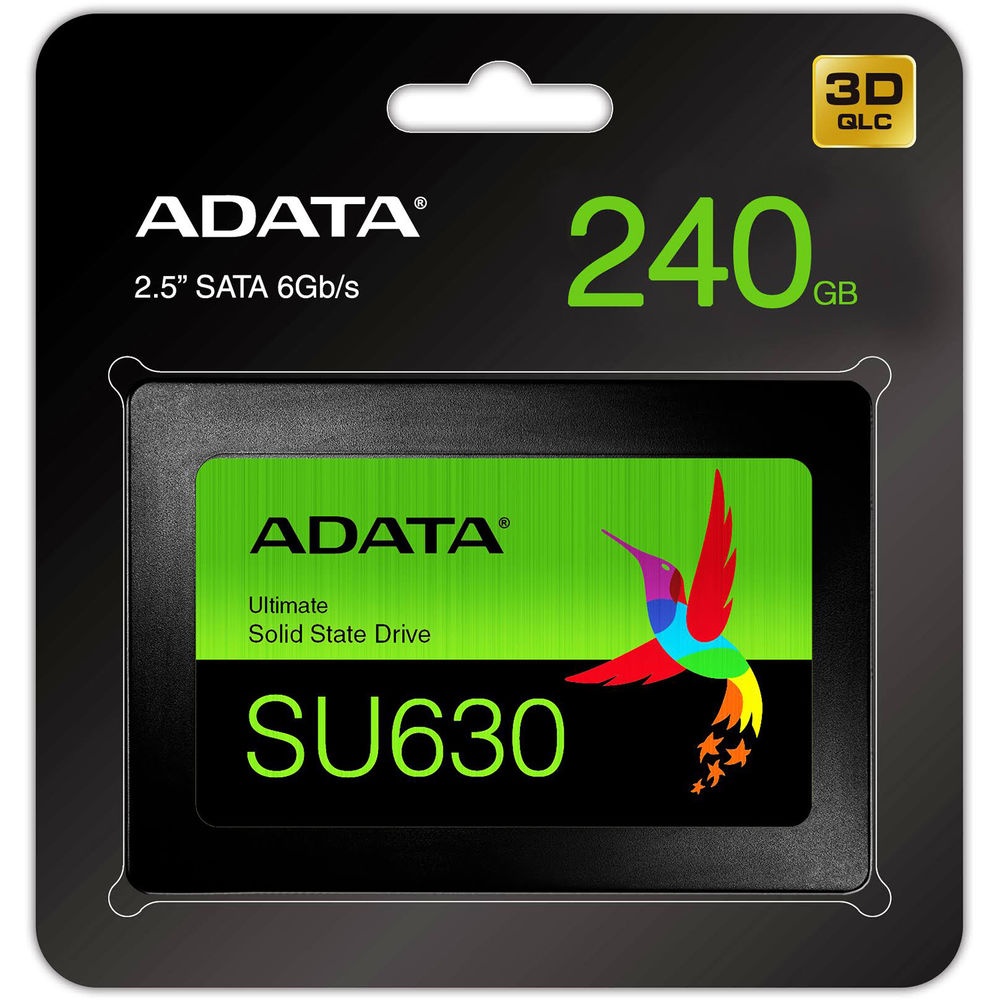

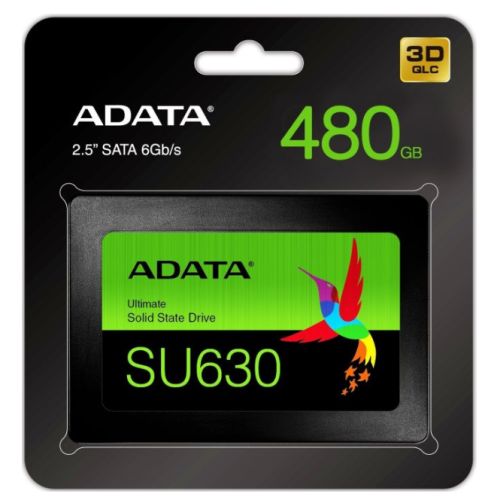

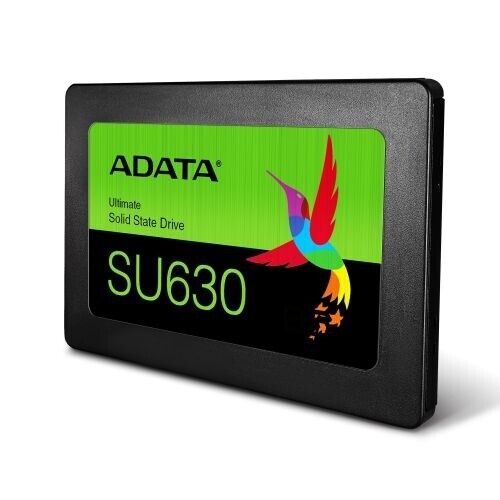

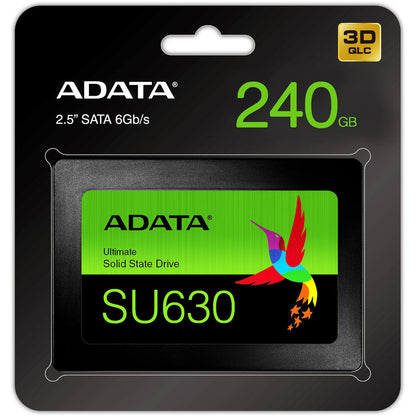

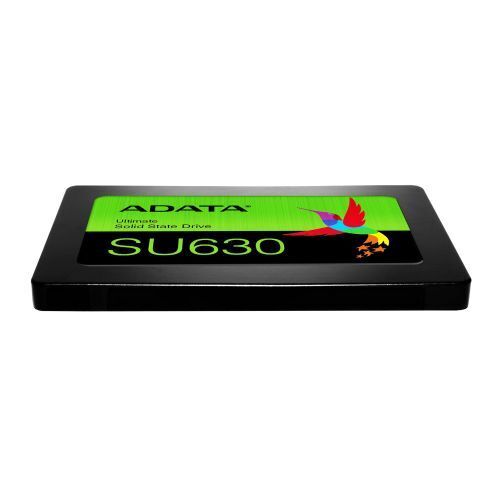

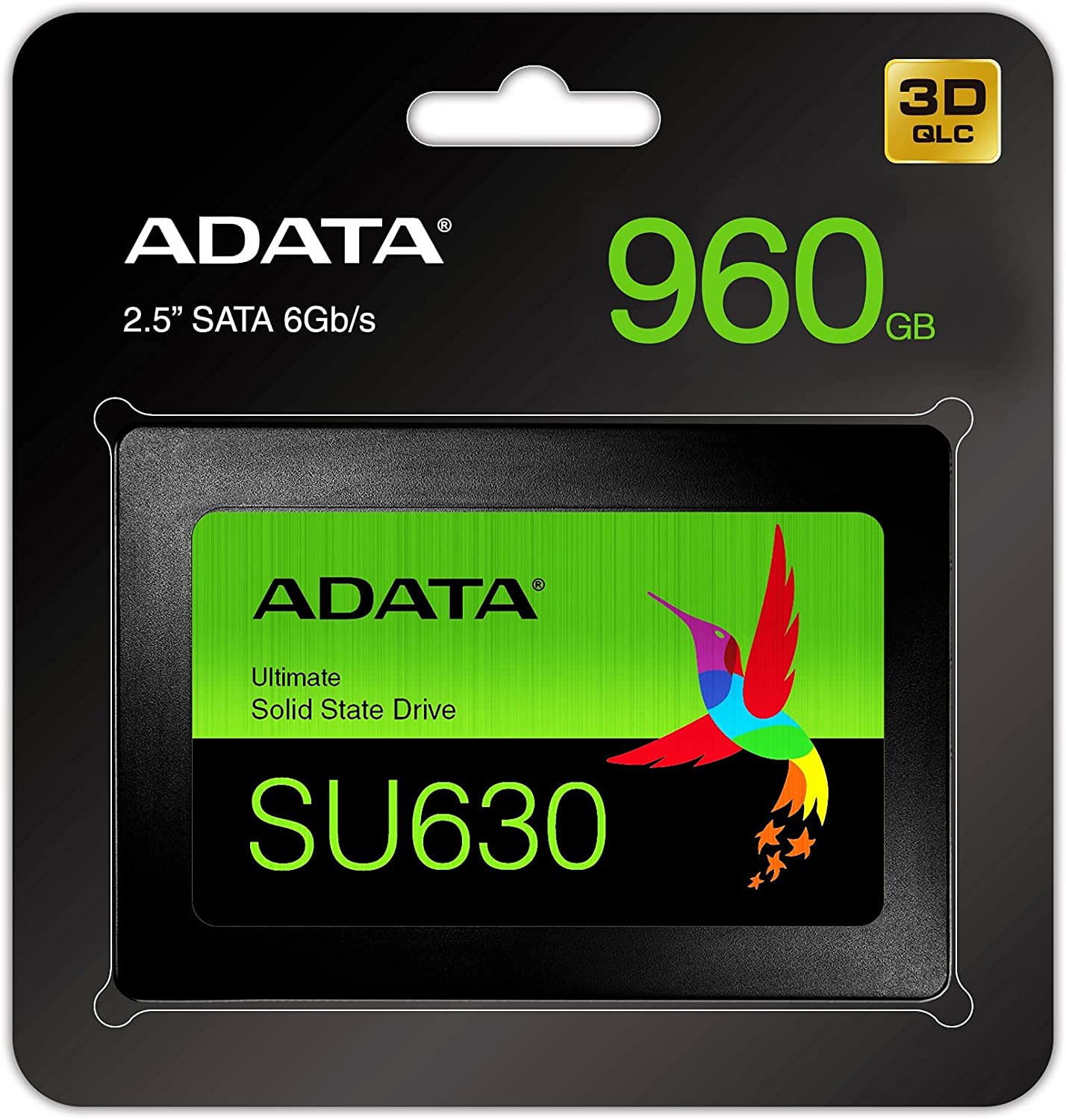

ADATA SU630 Ultimate 2.5" SATA3 SSD Drive - 240GB to 960GB

• 3D NAND Flash for higher durability and capacity.

• Write Speeds of up to 450Mb/s.

• Read Speeds of up to 520Mb/s.

• SLC caching in charge of enhancing transmission speeds.

• Advanced error correction.

• Tougher, quieter, and more reliable than HDDs.

• Supports ADATA proprietary software - SSD Toolbox and Migration Utility.

• Suitable for desktops and notebooks.

ADATA SU630 Ultimate 2.5" SATA3 SSD Drive

3D QLC SSD – High Capacity Without Breaking the Bank

Sporting the QLC 3D NAND Flash with 1.92TB of capacity and an attractive price point, the SU630 is an ideal upgrade for users looking to make the switch from HDD to SSD, whether as storage or a boot drive.

Performance Boost With Dynamic SLC Caching

Featuring dynamic SLC caching, NAND Flash memory operates in single-level cell mode and boosts performance. This allows the SU630 to reach read/write speeds of up to 520/450MB/s for smoother and faster boot, file transfers, and downloads.

Improved Data Integrity

With support for LDPC (Low-Density Parity-Check) error correcting code technology, the SU630 can detect and fix errors to ensure data integrity and thus enjoy an extended lifespan.

Tougher, Quieter, More Reliable

With no mechanical components, SSDs are more resilient than HDDs. They are more resistant to shock, vibration (1500G/0.5ms) and extreme temperatures (0°C-70°C) and therefore provide better protection for data. What’s more, SSDs also run silently and consume less power.

SSD Toolbox and Migration Utility

With the purchase of the SU630, users qualify to download ADATA’s SSD Toolbox and Migration Utility free of charge! SSD Toolbox allows users to monitor and manage the SU630, with drive status, wear level, and lifespan information. The Migration Utility is especially helpful for users making the switch from HDD to SSD, as it allows for simple and straightforward backup and migration of data, including the operating system.

SSD Toolbox

SSD ToolBox automatically ensures you have the latest firmware for optimal performance and allows for the monitoring of drive health and remaining life through Self-Monitoring, Analysis, and Reporting Technology (S.M.A.R.T.) attributes. It also lets you keep track of the current operating temperature, capacity, and total space used.

Capacity

240GB / 480GB / 960GB / 1.92TB

Form Factor

2.5"

NAND Flash

3D NAND

Dimensions (L x W x H)

100.45 x 69.85 x 7mm / 3.95 x 2.75 x 0.27inch

Weight

50.8g / 1.79oz

Interface

SATA 6Gb/s

Sequential Read (Max*)

Up to 520MB/s

Sequential Write (Max*)

Up to 450MB/s

Operating Temperature

0°C - 70°C

Storage Temperature

-40°C - 85°C

Shock Resistance

1500G / 0.5ms

MTBF

1,500,000 hours

Terabytes Written (TBW)(Max Capacity*)

800TB

Warranty

As of 2019.07.01, the limited warranty period for the SU630 has been extended to three years. Products purchased on/before 2019.06.30 will retain the original 2-year limited warranty period (inclusive).

Note

1. Actual performance may vary due to available SSD capacity, system hardware and software components, and other factors.
2. The SSD is based on the TBW or Warranty period.
